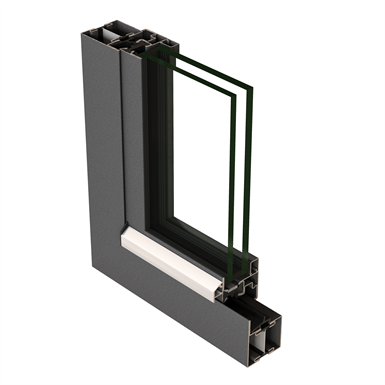

Il sistema JANSEN Janisol 60 finestra antincendio per finestre e vetrature fisse completa la gamma nel settore della protezione antincendio in aggiunta ai sistemi per porte e vetrature fisse. È omologato per la classe di resistenza al fuoco E/EW45 per applicazioni per finestre ed E/EW30 per vetrature fisse. La finestra presenta una profondità di 60 mm (telaio fisso) o 64 mm (ante finestra) e una larghezza in vista identica alla finestra JANSEN Janisol 60. Colpisce inoltre per la lavorazione semplice e razionale.
Additional links and information from the same product in Architonic
| Nome | Valore |
|---|---|
| Architonic ID | 20216905 |
| Architonic Product URL | https://www.architonic.com/en/product/jansen-janisol-1-fire-proof-windows/20216905 |
| Designer | by Jansen |
This property set allows objects to be COBie UK BIM Level 2 classified
| Nome | Valore |
|---|---|
| Assett Identifier | n/a |
| Bar Code | provided by metalworker |
| Created By | created by metalworker |
| Description | Janisol 1 fire-proof window |
| Installation Date | Created by metalworker |
| Name | Janisol 1 fire-proof window |
| Serial Number | provided by metalworker |
| Space | n/a |
| Tag Number | provided by metalworker |
| Warranty Start Date | provided by metalworker |
This property set allows objects to be COBie UK BIM Level 2 classified
| Nome | Valore |
|---|---|
| Accessibility Performance | light inlet, ventilation |
| Asset Type | fixed |
| Category | Pr_30_59_98_83 ; Steel window units |
| Code Performance | n/a |
| Colour | RAL, NCS |
| Constituents | locks, hinges, handles |
| Created By | created by metalworker |
| Description | Janisol 1 fire-proof window |
| Duration Unit | n/a |
| Expected Life | 50 |
| Features | various applications |
| Finish | powder coating, stove-enamelling |
| Grade | resistant |
| Manufacturer | metalworker |
| Material | strip-galvanised steel, glass, gasket |
| Model Number | n/a |
| Model Reference | n/a |
| Name | Janisol 1 fire-proof window |
| Shape | various |
| Size | max. 1265 x 2300 (one sash) |
| Sustainability Performance | n/a |
| Warranty Description | warranty by the metalworker |
| Warranty Duration Unit | n/a |
| Warranty Guarantor Labour | n/a |
| Warranty Guarantor Parts | n/a |
| Nome | Valore |
|---|---|
| AcousticRating | 43 dB |
| FlammabilityRating | E45 / EW45 |
| Nome | Valore |
|---|---|
| Energy Consumption (A1-A3) | 634.46065 MJ |
| EPD Declaration Unit | MJ |
| Global Warming (A1-A3) | 42.49175 kgCO2 |
| Non Renewable Resources Consumption (A1-A3) | 542.93331 MJ |
| Waste Production (A1-A3) | 1.53082 kg |
| Water Consumption (A1-A3) | 2.48986 m³ |
| Nome | Valore |
|---|---|
| Energy Consumption (A4-A5) | 2.07113 MJ |
| Global Warming (A4-A5) | 0.19977 kgCO2 |
| Non Renewable Resources Consumption (A4-A5) | 1.95326 MJ |
| Waste Production (A4-A5) | 0.00109 kg |
| Water Consumption (A4-A5) | 0.00738 m³ |
| Nome | Valore |
|---|---|
| Energy Consumption (B1-B7) | 0 MJ |
| Global Warming (B1-B7) | 0 kgCO2 |
| Non Renewable Resources Consumption (B1-B7) | 0 MJ |
| Waste Production (B1-B7) | 0 kg |
| Water Consumption (B1-B7) | 0 m³ |
| Nome | Valore |
|---|---|
| Energy Consumption (C1-C4) | 1.30025 MJ |
| Global Warming (C1-C4) | 0.21029 kgCO2 |
| Non Renewable Resources Consumption (C1-C4) | 1.19368 MJ |
| Waste Production (C1-C4) | 0.71631 kg |
| Water Consumption (C1-C4) | 0.0275 m³ |
| Nome | Valore |
|---|---|
| Energy Consumption (D) | -231.85601 MJ |
| Global Warming (D) | -18.03509 kgCO2 |
| Non Renewable Resources Consumption (D) | -211.41459 MJ |
| Waste Production (D) | 0.57857 kg |
| Water Consumption (D) | -3.5052 m³ |
