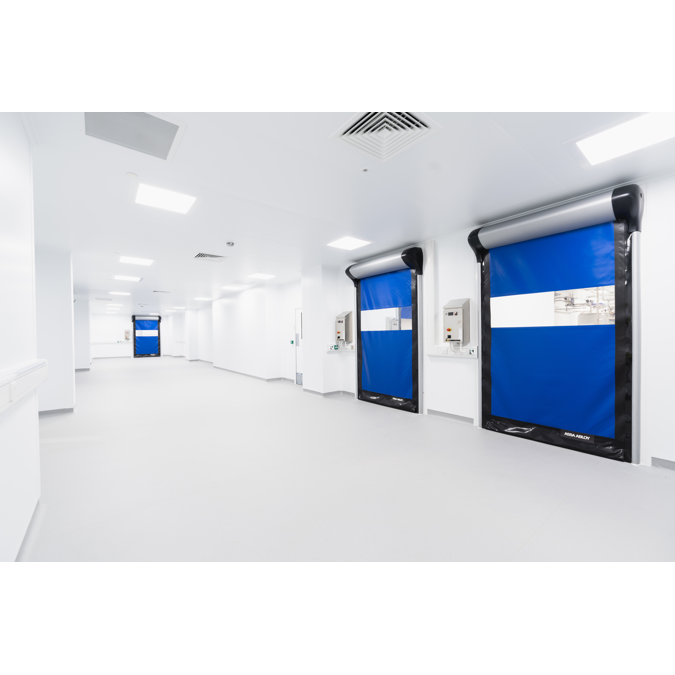

ASSA ABLOY HS9130GAT High Speed Door

ASSA ABLOY HS9130GAT High Speed Door

The ASSA ABLOY HS9130GAT high speed door is a compact, airtight door with integrated motor for inside environments,
type cleanroom. The door offers perfect sealing thanks to a unique design. The ASSA ABLOY HS9130GAT high speed door
requires very little space, and it is the most space-efficient high speed door available in the market.

Integrated connectivity is available as an option to enable monitoring, controlling, and accessing door data via ASSA ABLOY Insight.

Features

  • Area of use: Inside
  • Material :
    • Structure: Galvanized steel
    • Side column covers: Glass fiber, silver grey
    • Drum cover: Glass fiber, silver grey
    • Drum side covers: PC/ABS, black
  • Max size (W x H): 4000 mm x 4000 mm
  • Colours: 11 standard colours - white, yellow, green, orange, red, grey, traffic grey B, anthracite, black, blue, gentian blue
  • Safety:
    • Photocells in side columns
    • Flexible soft bottom beam including wireless detection device
    • Break-away and self-reset function
  • Options: Different vision options are available

Performance

  • Operating speed: Opening: up to 2,7 m/s*; Closing: 0,5 m/s
  • Wind load resistance: Class 1 (300 Pa (N/m²)) maximum wind load while closing 50 Pa (N/m²)
  • Water penetration: Class 3 (>50 Pa (N/m²))
  • Air permeability: Class 4 (3 m³/m²/h at 50 Pa) Overpressure; Class 3 (6 m³/m²/h at 50 Pa) Underpressure
  • Thermal transmittance: 6,02 W/(m²K)
  • Performance Test: 1.000.000 cycles
  • Temperature working range: 5 °C to +40 °C

* Depending on door size

Unique ref.
aa_a_hs9130_gat
Product family
High Speed Doors
Collection
Cleanroom Doors
Type
Object (single object)
Date of publishing
2026-02-16
Edition number
1
COBie product data sheet
Product URL
Installation instructions
Product certification
Technical description
Main material
Stainless steel
BIMobject category
Doors - Industrial Doors
IFC classification
Door
ETIM code
EC003535
ETIM name
Interior door (complete with frame)
UNSPSC name
Doors
UNSPSC code
301715
Uniclass 2015 code
Pr_30_59_24_38
Uniclass 2015 description
High speed doorsets
CSI MasterFormat 2014 code
08 11 00
CSI MasterFormat 2014 title
Metal Doors and Frames
OmniClass number
23-17 11 00
OmniClass title
Doors
CSI UniFormat II code
C1020
CSI UniFormat II title
Interior Doors
