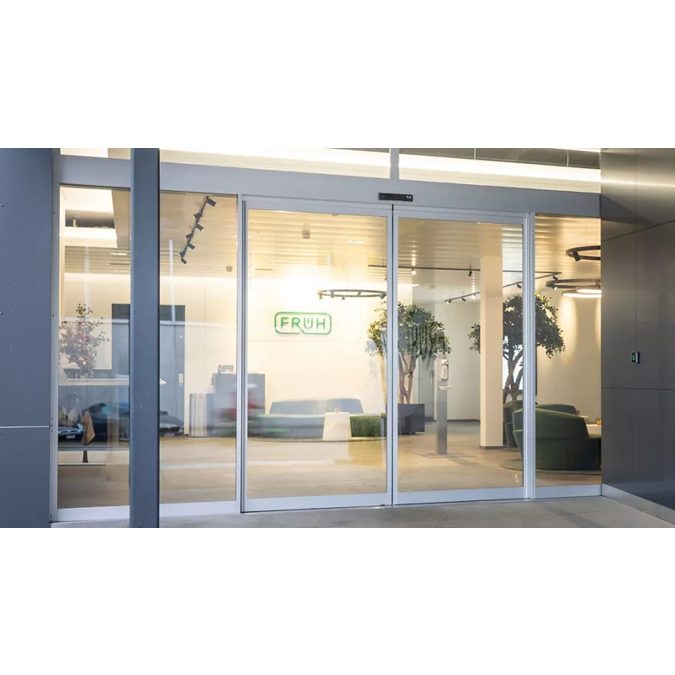

Sliding Door ASSA ABLOY SL600 T

The telescopic door system is designed to maximize the opening width of narrow passages, offering an impressive solution when space is at a premium.
This innovative door system ensures that even the tightest spaces can benefit from a wide and accessible entrance.

Optimizing space
Telescopic doors are an innovative solution designed to maximize the opening width of narrow passages, offering an impressive and efficient way to utilize limited space. These doors operate by sliding multiple panels into a compact stack, thereby creating a wider opening compared to traditional sliding doors. This feature is particularly beneficial in environments where space is at a premium, such as in urban apartments, commercial buildings, and other areas with restricted dimensions.

By employing telescopic sliding doors, you can enhance accessibility and improve the flow of movement within a space. Their sleek design and smooth operation not only provide practical advantages but also add a touch of modern elegance to any setting.

Versatile platform door system

The SL600 is a modular platform door system available in two distinct profile widths. It serves as the foundation for a wide variety of door models, all built using the same core components, which can be adapted to meet specific customer requirements.

  • 20 mm profile (left): Features 10 mm thick single-glazed panels, offering a sleek and modern aesthetic ideal for interior applications.
  • 32 mm profile (right): Accommodates 24 mm thick insulating glass, making it suitable for exterior doors where enhanced thermal performance is essential.

Single sliding door
Clear Opening Width (COW): 1000 – 3 000 mm
Clear Opening Height (COH): 3 000 mm
Max. door leaf weight: 2 x 130 kg

Bi-parting sliding door
Clear Opening Width (COW): 1200 – 4 000 mm
Clear Opening Height (COH): 3 000 mm
Max. door leaf weight: 4 x 90 kg

Unique ref.
sliding-door-sl600-t
Product family
Automatic Sliding Doors
Collection
by ASSA ABLOY
Type
Object (single object)
Date of publishing
2025-10-07
Edition number
1
Height (mm)
3000
Width (mm)
4000
Main material
Aluminum
Secondary material
Glass
Designed in
Switzerland
Manufactured in
Switzerland
Weight net (kg)
130
BIMobject category
Doors - Automatic doors
IFC classification
Door
ETIM code
EC001521
ETIM name
Door sliding contact
Uniclass 2015 code
Ac_15_50_25
Uniclass 2015 description
Doors, windows and glazing surveying
CSI MasterFormat 2014 code
08 42 29
CSI MasterFormat 2014 title
Automatic Entrances
OmniClass number
23-13 33 21 19 11
OmniClass title
Automatic All-Glass Entrances
