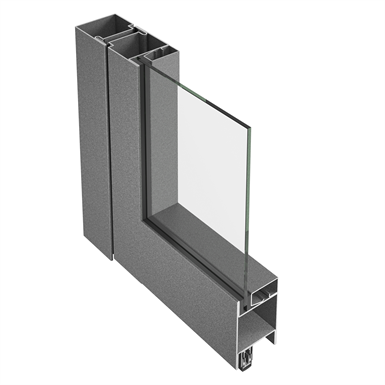

Mit den bekannten Jansen-Economy-Profilen lassen sich mit geringem Aufwand Brandschutztüren der Klasse E30/EW30/E60/EW60 und Festverglasungen bis zur Klasse E90 fertigen. Das Erscheinungsbild der Jansen-Economy Türen ist identisch mit dem der Janisol 2 und Janisol C4 Brandschutzsysteme. Die Profile der Bautiefe 60 zeichnen sich durch schmale Ansichtsbreiten aus.
Als Rauchschutzsysteme ermöglichen Jansen-Economy-Profile eine rationelle Fertigung flächenbündiger Rauchschutztüren nach DIN 18095. Eine Vielzahl an Design- und Funktionsvarianten sind geprüft und zugelassen.
Additional links and information from the same product in Architonic
| Name | Wert |
|---|---|
| Architonic ID | 20178928 |
| Architonic Product URL | https://www.architonic.com/en/product/jansen-fire-doors-economy-60/20178928 |
| Designer | by Jansen |
Link to the tender texts on AUSSCHREIBEN.DE
| Name | Wert |
|---|---|
| Bezeichnung | Economy 60 E30 |
| Link | https://ausschreiben.de/catalog/alukoenigstahl/catalogItem/2fddb097-ac45-4836-9fc8-7035d2b237f6?tab=Overview |
| Name | Wert |
|---|---|
| Air Infiltration | 13.21 gpm |
| Cladding Material | sheet metal (instead of glass filling) |
| Colour | RAL, NCS |
| Colour Range | various |
| Door Hinge Reinforcement | without |
| Door Lockset Reinforcement | without |
| Door Style | various |
| Fabrication Method | welding |
| Glazing Thickness | 5 — 36 |
| Hurricane Resistant Tested | False |
| Integral Finish | powder coating, stove-enamelling |
| Integrated Entrance Framing | False |
| Integrates With Windows | False |
| Intended Function | pedestrian access |
| Material | strip galvanised steel, glass, panel, gasket |
| Material - Core | hollow |
| Maximum Door Height | 3750 mm |
| Maximum Door Width | 3500 mm |
| Method Of Operation | manual, electric |
| Pre-Assembled Door And Frame | False |
| Shape | various |
| Thermal Transmittance | 5.65 W/m²K |
This property set allows objects to be COBie UK BIM Level 2 classified
| Name | Wert |
|---|---|
| Assett Identifier | n/a |
| Bar Code | provided by metalworker |
| Created By | created by metalworker |
| Description | Economy 60 fire protection door |
| Name | Economy 60 fire protection door |
| Serial Number | provided by metalworker |
| Space | n/a |
| Tag Number | provided by metalworker |
| Warranty Start Date | provided by metalworker |
This property set allows objects to be COBie UK BIM Level 2 classified
| Name | Wert |
|---|---|
| Accessibility Performance | pedestrian access |
| Asset Type | fixed |
| Category | Pr_30_59_24_28 ; Fire doorsets |
| Code Performance | n/a |
| Colour | RAL, NCS |
| Constituents | door closer, locks, automatic opener, hinges, handles |
| Created By | created by metalworker |
| Description | Economy 60 fire protection door |
| Duration Unit | n/a |
| Expected Life | 50 |
| Features | various applications |
| Finish | powder coating, stove-enamelling |
| Grade | resistant |
| Manufacturer | metalworker |
| Material | strip galvanised steel, glass, panel, gasket |
| Model Number | n/a |
| Model Reference | n/a |
| Name | Economy 60 fire protection door |
| Shape | various |
| Size | max. 1750 x 3750 mm (one door leaf) |
| Sustainability Performance | n/a |
| Warranty Description | warranty by the metalworker |
| Warranty Duration Unit | n/a |
| Warranty Guarantor Labour | n/a |
| Warranty Guarantor Parts | n/a |
| Name | Wert |
|---|---|
| AcousticRating | 44 dB |
| FlammabilityRating | E30/EW30/E60/EW60 |
