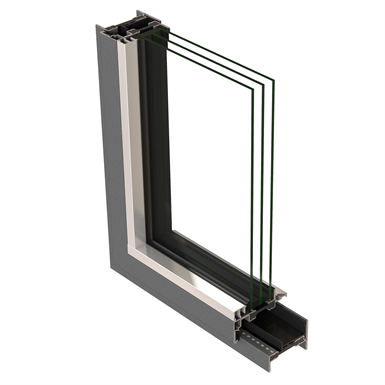

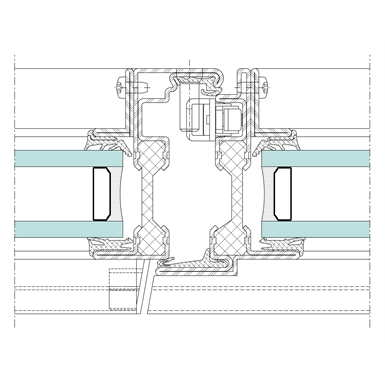

Mit JANSEN Janisol Arte 66 erweitert Jansen die Systemfamilie um eine attraktive Variante: Die Bautiefe von 66 mm erlaubt es, stärkere Gläser einzusetzen, und das bis zu einer Flügelhöhe von 2300 mm. Damit lässt sich die Öffnungsart „Drehkipp“ auch bei besonderen Anforderungen der Denkmalpflege an schmale Rahmen realisieren. Mit dem verdeckt liegendem Beschlag entsprechen sie der Nachfrage von Architekten und Planern nach durchgängiger Gestaltung und klarer Linienführung, die keine optische Störung erlaubt. Verarbeitern erleichtert die Euronute den Beschlags-, und das neue Glasleistensystem den Scheibeneinbau. Die Verarbeitung mit Steckdichtung oder Trockenverglasung erfolgt in gewohnter Weise, wie von den Stahlprofilen JANSEN Janisol 60 und JANSEN Janisol Arte 60 bereits bekannt – damit ist eine hohe Prozesssicherheit gegeben.
Additional links and information from the same product in Architonic
| Name | Wert |
|---|---|
| Architonic ID | 20090094 |
| Architonic Product URL | https://www.architonic.com/en/product/jansen-janisol-arte-66/20090094 |
| Designer | by Jansen |
Link to the tender texts on AUSSCHREIBEN.DE
| Name | Wert |
|---|---|
| Bezeichnung | Jansen Janisol Arte 66 |
| Link | https://ausschreiben.de/catalog/alukoenigstahl/catalogItem/c96c44c0-720a-4754-9c4f-2cab61bc6475 |
This property set allows objects to be COBie UK BIM Level 2 classified
| Name | Wert |
|---|---|
| Assett Identifier | n/a |
| Bar Code | provided by metalworker |
| Created By | created by metalworker |
| Description | Janisol Arte 66 window |
| Name | Janisol Arte 66 window |
| Serial Number | provided by metalworker |
| Space | n/a |
| Tag Number | provided by metalworker |
| Warranty Start Date | provided by metalworker |
This property set allows objects to be COBie UK BIM Level 2 classified
| Name | Wert |
|---|---|
| Accessibility Performance | light inlet, ventilation |
| Asset Type | fixed |
| Category | Pr_30_59_98_83 ; Steel window units |
| Code Performance | n/a |
| Colour | RAL, NCS |
| Constituents | locks, hinges, handles |
| Created By | created by metalworker |
| Description | Janisol Arte 66 window |
| Duration Unit | n/a |
| Expected Life | 50 |
| Features | various applications |
| Finish | powder coating, stove-enamelling |
| Grade | resistant |
| Manufacturer | metalworker |
| Material | strip-galvanised steel, glass, gasket |
| Model Number | n/a |
| Model Reference | n/a |
| Name | Janisol Arte 66 window |
| Shape | various |
| Size | max. 1400 x 2300 mm (one sash) |
| Sustainability Performance | n/a |
| Warranty Description | warranty by the metalworker |
| Warranty Duration Unit | n/a |
| Warranty Guarantor Labour | n/a |
| Warranty Guarantor Parts | n/a |
| Name | Wert |
|---|---|
| AcousticRating | 47 dB |
| Name | Wert |
|---|---|
| Energy Consumption (A1-A3) | 1292.29814 MJ |
| EPD Declaration Unit | MJ |
| EPD Document Link | https://epd-online.com/EmbeddedEpdList/Download?id=16255 |
| EPD Expiration Date | 2028-10-20 |
| EPD Issue Date | 2023-10-20 |
| EPD Registration Number | EPD-JAN-20230115-CBA1-EN |
| Global Warming (A1-A3) | 87.35594 kgCO2 |
| Non Renewable Resources Consumption (A1-A3) | 1131.99501 MJ |
| Waste Production (A1-A3) | 4.80706 kg |
| Water Consumption (A1-A3) | 6.96045 m³ |
| Name | Wert |
|---|---|
| Energy Consumption (A4-A5) | 4.05347 MJ |
| Global Warming (A4-A5) | 0.32318 kgCO2 |
| Non Renewable Resources Consumption (A4-A5) | 3.82543 MJ |
| Waste Production (A4-A5) | 0.00109 kg |
| Water Consumption (A4-A5) | 0.00657 m³ |
| Name | Wert |
|---|---|
| Energy Consumption (B1-B7) | 0 MJ |
| Global Warming (B1-B7) | 0 kgCO2 |
| Non Renewable Resources Consumption (B1-B7) | 0 MJ |
| Waste Production (B1-B7) | 0 kg |
| Water Consumption (B1-B7) | 0 m³ |
| Name | Wert |
|---|---|
| Energy Consumption (C1-C4) | 8.61148 MJ |
| Global Warming (C1-C4) | 0.71893 kgCO2 |
| Non Renewable Resources Consumption (C1-C4) | 7.61722 MJ |
| Waste Production (C1-C4) | 28.74212 kg |
| Water Consumption (C1-C4) | 0.07758 m³ |
| Name | Wert |
|---|---|
| Energy Consumption (D) | -227.44851 MJ |
| Global Warming (D) | -15.05246 kgCO2 |
| Non Renewable Resources Consumption (D) | -228.7694 MJ |
| Waste Production (D) | 1.72703 kg |
| Water Consumption (D) | -2.28262 m³ |
